How Much Does an HVAC System Weigh? Ever thought about the weight of the system outside your home? It’s not just a number. It’s key for installation, upkeep, and how well it works.
These machines are not light. A typical air conditioner’s outside unit can weigh 150 to 210 pounds when shipped. The weight depends on size, capacity, and materials.
Knowing your HVAC’s weight helps with installation, moving it, and making sure it’s supported right. It’s important for homeowners and contractors alike.
Key Takeaways
- HVAC system weights range from 150 to 210 pounds for residential units
- Weight impacts installation, transportation, and structural requirements
- Different HVAC types have varying weight specifications
- Professional assessment is key for proper system placement
- Material composition greatly affects system weight
Table of Contents
Understanding HVAC System Weight Basics
Exploring HVAC systems means knowing about weight. The weight of your HVAC unit is not random. It’s a mix of factors that affect how well it works and how it’s installed.
The weight of an AC unit comes from several key parts. Understanding these parts helps you choose the right heating and cooling setup.
What Determines an HVAC Unit’s Weight
Several things affect an HVAC unit’s weight, including:
- Material composition
- Size of the system
- Cooling capacity
- Internal components
- External housing design
Weight vs. Cooling Capacity Explained
Tonnage in HVAC doesn’t mean weight. It shows how much heat the unit can remove. One ton is 12,000 British Thermal Units (BTUs) per hour.
| Tonnage | BTUs | Typical Square Footage |
|---|---|---|
| 1 Ton | 12,000 | 400-500 sq ft |
| 2 Tons | 24,000 | 800-1000 sq ft |
| 3 Tons | 36,000 | 1200-1500 sq ft |
Impact of Size and Materials on Weight
The weight of your HVAC system depends on its materials. Aluminum, copper, steel, and composite materials each add to the unit’s mass and how well it keeps you cool.
Professional tip: Always consult with an HVAC specialist to determine the right unit weight and capacity for your specific space.
Residential Air Conditioner Weight Range
Knowing the air conditioner’s weight is key when setting up a new HVAC system at home. The outside unit usually weighs between 150 to 210 pounds when shipped. This weight can change based on several important factors that homeowners need to think about.
The weight of a residential HVAC system depends on several things that affect how well it works. Different factors affect the unit’s weight, including:
- Cooling capacity
- System design
- Materials used in construction
- Compressor type
Smaller air conditioning units for small spaces might weigh around 150 pounds. Bigger systems for larger homes could weigh up to 210 pounds. HVAC experts suggest looking at both the weight and your home’s cooling needs when picking a unit.
Your specific HVAC weight depends on several important things:
- Square footage of your living space
- Insulation quality
- Local climate conditions
- Energy efficiency ratings
Always talk to a professional before installing. They can check your cooling needs and suggest the best air conditioning system for your home.
How Much Does an HVAC System Weigh by Type
Knowing the weight of different HVAC systems is key for homeowners and HVAC pros. The weight of an HVAC system varies a lot, depending on the unit and its design. This guide will show you the weight ranges for various HVAC setups.
When picking an HVAC system, weight matters a lot. It affects installation, moving the unit, and how it fits with your home’s structure. Each system type has its own weight due to its unique features.
Central Air Conditioning Units
Central air units vary in weight based on their cooling power. A typical home central AC unit weighs between 150 to 300 pounds. The weight depends on:
- Cooling capacity
- Compressor size
- Construction materials
- Extra features and parts
Heat Pump Systems
Heat pumps do both heating and cooling. They usually weigh between 100 to 250 pounds. Their weight is influenced by:
- Heat exchanger size
- Efficiency rating
- Refrigerant type
- Integrated tech components
Gas Furnace Units
Gas furnaces are a big part of HVAC systems. Their weight changes a lot based on size and efficiency. A standard home gas furnace weighs between 100 to 200 pounds.
“The weight of your HVAC system is more than just a number – it’s a critical factor in performance and installation,” says HVAC expert Robert Martinez.
When choosing an HVAC system, think about the weight and how it fits your home’s needs and structure.

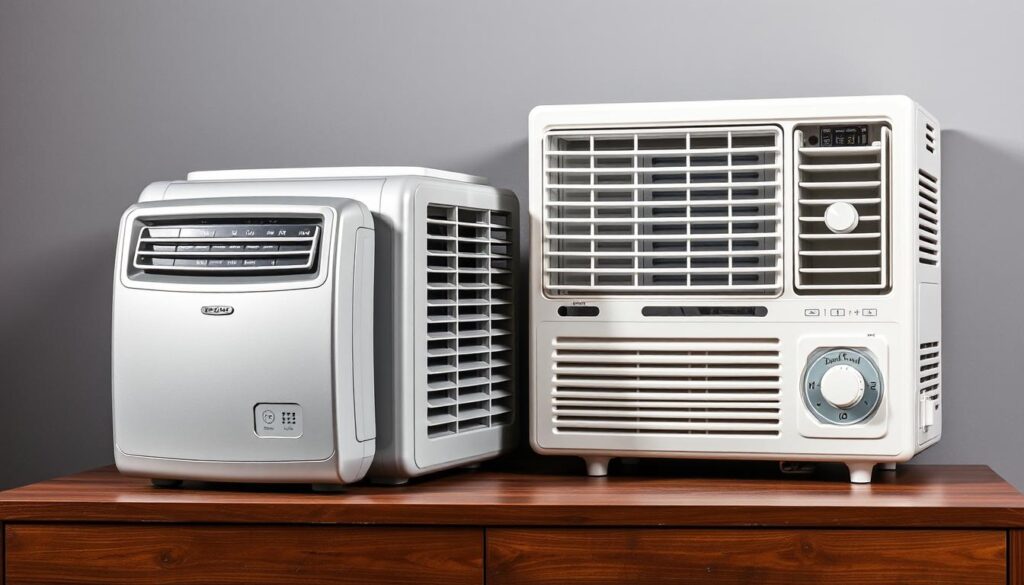

Window and Portable AC Unit Weights
Looking to cool a specific room or space? Window and portable air conditioners are great options. Their weights vary based on cooling capacity and design.
Most window and portable AC units weigh between 50 to 120 pounds. This is much lighter than central air systems. They are made for easy moving and setting up in homes.
- Lightweight window units typically weigh 50-80 pounds
- Larger portable AC units can reach 100-120 pounds
- Cooling capacity directly influences the unit’s weight
Knowing your portable AC’s weight is key for safe use and moving. Smaller rooms need lighter units, while bigger spaces need heavier ones.
| AC Type | Average Weight | Typical Room Size |
|---|---|---|
| Small Window Unit | 50-60 lbs | 150-300 sq ft |
| Medium Window Unit | 70-90 lbs | 300-500 sq ft |
| Portable AC Unit | 80-120 lbs | 300-700 sq ft |
When picking a window or portable AC, think about the weight. Make sure it fits your installation surface. Always follow the manufacturer’s safety tips for mounting and use.
Commercial HVAC System Weight Considerations
Commercial HVAC systems have their own set of weight challenges. The weight of these systems can affect building design and installation. It’s key for architects, engineers, and facility managers to understand these weight factors.
Different commercial HVAC systems have varying weights and load needs. You must consider several factors before installing them.
Light Commercial Units
Light commercial HVAC units weigh between 500 to 2,000 pounds. They are made for smaller areas like:
- Small office buildings
- Retail stores
- Small restaurants
- Medical clinics
Heavy-Duty Industrial Systems
Industrial HVAC systems are much heavier. They can weigh from 3,000 to 15,000 pounds. They need special installation and strong structural support.
Rooftop Unit Specifications
Rooftop HVAC units need careful weight distribution. The load on your roof must handle the unit and extra infrastructure like:
- Ductwork
- Piping systems
- Electrical connections
- Mounting brackets
Experts suggest doing detailed structural checks before installing commercial HVAC systems. This ensures they work safely and efficiently.
Understanding Tonnage vs. Physical Weight
When you look into how much an HVAC system weighs, you’ll find a key difference. HVAC pros talk about “tonnage” in a way that’s not about the system’s weight. Instead, it’s about how much cooling it can do.
The idea of tonnage comes from a cool historical method. One ton of cooling is the heat needed to melt one ton of ice in 24 hours. This means it’s about 12,000 British Thermal Units (BTUs) of cooling power per hour.
- 1 ton = 12,000 BTUs of cooling capacity
- 4-ton system = 48,000 BTUs of cooling power
- Actual physical weight varies by system type
Home HVAC systems usually range from 1.5 to 5 tons. The actual weight of an HVAC system depends on several things:
- Unit size
- Materials used
- Specific system configuration
| Tonnage | BTUs | Typical Weight Range |
|---|---|---|
| 1.5 ton | 18,000 BTUs | 100-200 lbs |
| 3 ton | 36,000 BTUs | 250-350 lbs |
| 5 ton | 60,000 BTUs | 400-500 lbs |
Knowing this difference helps you choose the right HVAC system. Remember, tonnage is about cooling power, not the system’s weight.
Installation and Weight Distribution Requirements
Installing an HVAC system is a big deal. It’s all about how the weight is spread out and supported. Your home’s structure must handle the weight right to work well and avoid damage.
Getting it right needs careful planning and the right skills. The weight of an HVAC system can really affect your building’s strength. It’s important to know exactly what your setup needs.
Structural Support Needs
Different HVAC systems need different support plans. Here are some key things to think about:
- Roof units need strong mounting spots
- Ground units need solid, level bases
- Indoor units must be anchored well to stop shaking
Safety Considerations During Installation
When working with HVAC system weight, safety is top priority. Pros must:
- Check if the surface can hold the weight
- Use the right tools for lifting
- Spread the weight out to avoid stressing the structure
Professional Installation Guidelines
Experts follow strict rules for safe and good installation:
| Installation Step | Weight Consideration |
|---|---|
| Site Evaluation | Check if the structure can handle the load |
| Equipment Placement | Put it in the right spot to avoid stress |
| Mounting Method | Use special brackets and supports |
Remember, getting a pro to install is vital. It helps manage the weight well and keeps your system running smoothly and safely.

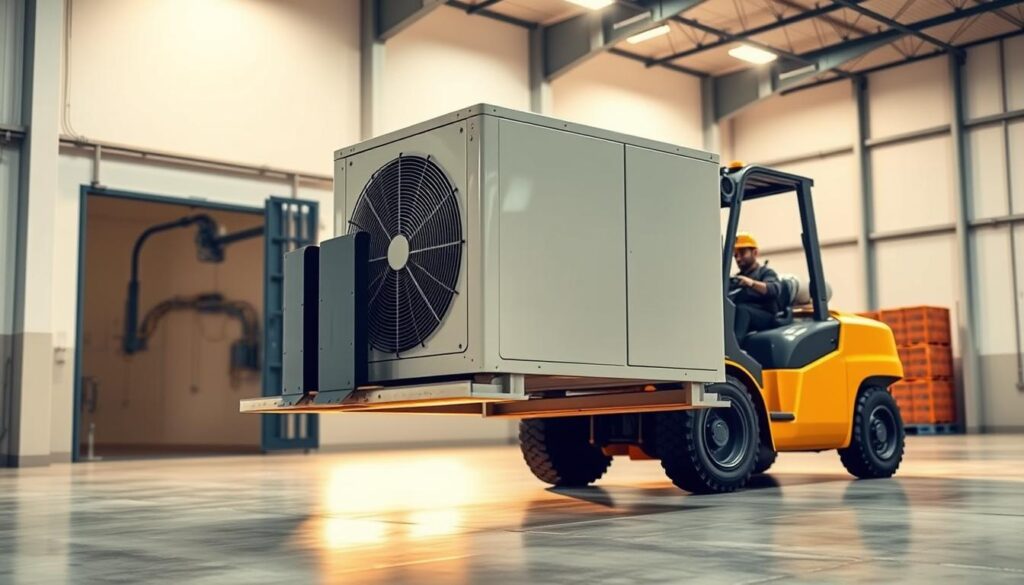

Transportation and Handling Guidelines
Moving an HVAC system needs careful planning and expertise. The ac unit’s weight is key in choosing how to move it. Each type of air conditioning unit has its own handling needs to avoid damage and ensure safe delivery.
When moving HVAC equipment, consider a few important things:
- Proper lifting equipment for heavy ac unit weight
- Specialized transportation vehicles
- Protective packaging materials
- Skilled professional movers
Residential air conditioning units weigh between 60-180 pounds. Commercial systems can be 200 to 1,500 pounds. This big difference means each unit needs special handling.
Your moving plan should include:
- Securing the unit with strong straps
- Using padded moving equipment
- Protecting delicate parts from vibration
- Keeping the right temperature during transport
Professional movers suggest using special HVAC trailers. These trailers offer stability and protect sensitive cooling equipment.
Safety is key when moving heavy HVAC systems. Always use the right equipment and trained people.
Remember, moving HVAC systems wrong can cause a lot of damage. This could cost thousands in repairs or a new system. Getting professional moving services means your HVAC system will arrive safely and work well.
Conclusion
Knowing how much an HVAC system weighs is key for proper installation and upkeep. We’ve looked at how different types of HVAC units vary in weight. This includes everything from home air conditioners to big commercial systems.
The weight of an HVAC system affects many things. It impacts the support needed for the structure and how it’s moved. This is why knowing the weight is so important.
Residential units usually weigh between 100 to 400 pounds. But commercial systems can be much heavier, sometimes over a thousand pounds. This shows how important it is to get a professional’s opinion before installing.
Your specific needs will guide you to the right HVAC system. Always talk to certified HVAC experts. They can give you advice that fits your space and cooling needs.
Understanding HVAC system weights is more than just numbers. It’s about making sure your cooling system is safe, efficient, and comfortable. Take the time to research and get expert advice for the best HVAC system for you.
